Best Automatic Double Spindles Winding Machine Series Manufacturer and Factory | Yitai

Automatic Double Spindles Winding Machine Series

Short Description:

N. With yarnd counter to make sure yarns on bobbins same length, and the yarns can be replaced one time on the braiding machine. The output can increase 20% to 30% and reduce yarn waste.

N. With double motors and inverters, both sides can be counted separately, reduce deviation.

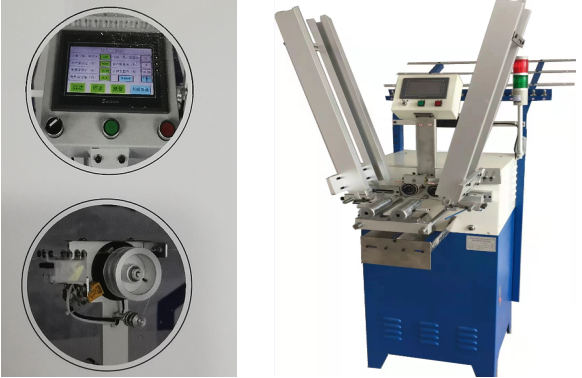

N. Touch screen control, real-time display of production data, convenient for production management and control, greatly improve productiviity.


Product Detail

Spare parts

Product Tags

Application:

The motor works smoothly to feed the yarn with uniform tension. The yarn runs as fiber,nylon.

Features:

1. Touch sceen control, real-time display of production data, convenient for production management and control, greatly improve productivity.

2. High-accurary counter to reduce yarn waste.

3. With double motors and inverters, both sides can be counted separately, reduce deviation.

4. High production, speed up to 4000RPM.

5. Able to set bobbin quantity.

6.Able to set winding length for bobbins on each side separately.

Spare parts requirements:

Please fill out the form by“ spare parts inquiry”if you have any spare parts requirement, and provide nameplate of the machine. Send drawing according to the spare parts manual, real spare parts need be provided if necessary.

YTS-S Series Specification:

Model 828-1 828-2
Bobbin diameter 48mm 70mm
Bobbin length 140mm 210mm
Motor 1HP 1HP
Size of appearance(mm) 900*1400*1600mm



  • Previous:
  • Next:

  • 5ff1ad2b82d30

    Parts list (More other spare parts available. Please contact us to get more spare parts details.)

    the front reed IMG_7482 test
    weft needle IMG_7472
    crochet needle IMG_7496
    needle IMG_7661
    heald IMG_7291
    Drop wires IMG_7287
     selvedge plate  IMG_7729
      Aluminum hand  IMG_7522
     shedding lever  IMG_7636
     heald frame-middle  IMG_8141
     heald frames assem  IMG_8155
