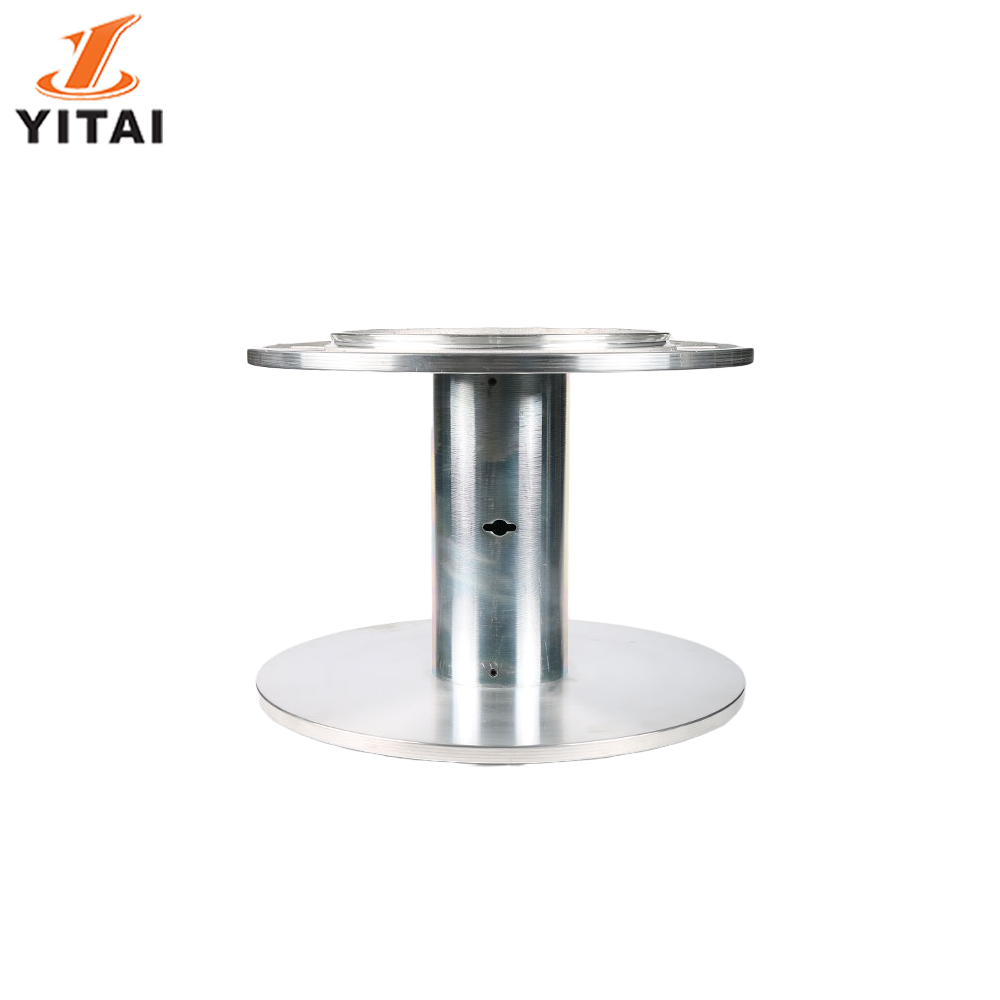

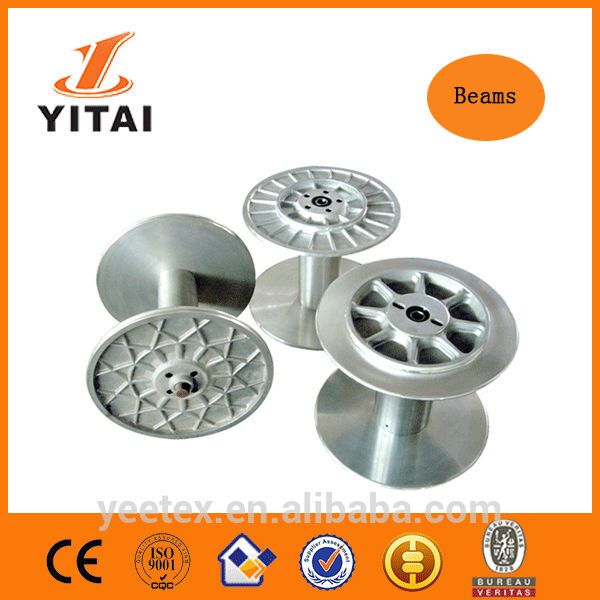

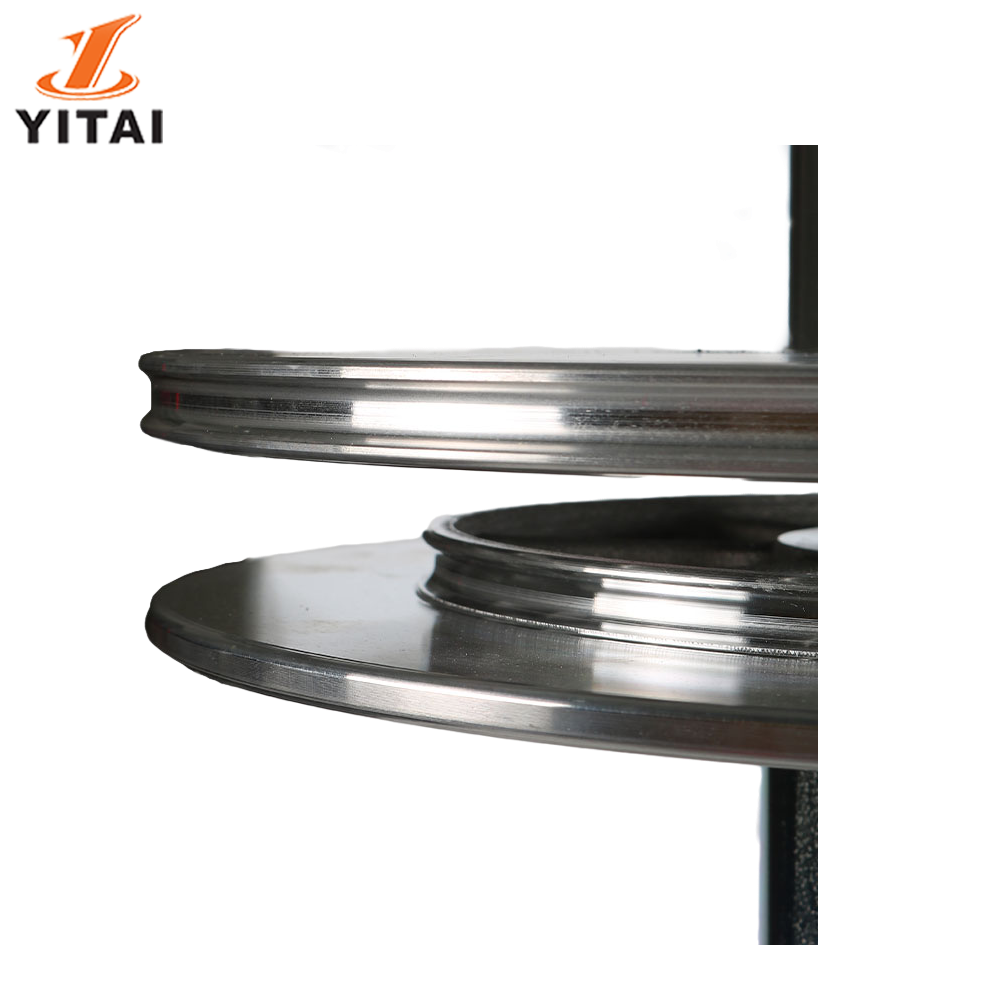

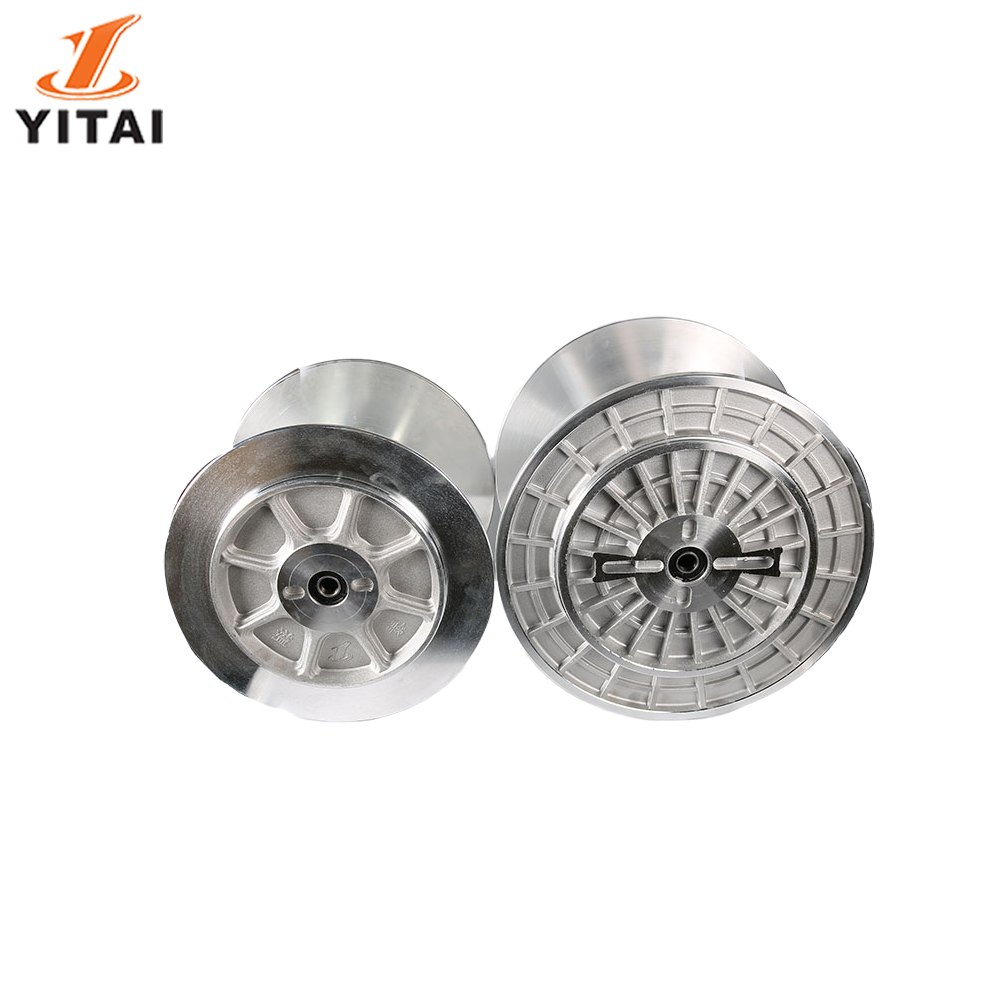

YITAI New Aluminium Bobbin Forged Beam Spindle Bobbin Warp Beam for Loom Weaving Machinery
| MATERIAL | Aluminium+steel pipe | Aluminium+steel pipe | Full aluminium | Aluminium+steel pipe | Plastic |
| UNIT | PC | PC | PC | / | PC |
| SIZE | 255*Φ355MM | 255*Φ355MM | 255*Φ400MM | 255*Φ400MM | 250MM*Φ250MM |
| NET WEIGHT | 6KG | 8.2kg | 9.2kg | 9.8kg | 0.7KG |
| CARTON SIZE | 58*36*32 cm Qty: 2 pcs/carton | 67*40*32 cm Qty: 2 pcs/carton | / | ||
Parts list (More other spare parts available. Please contact us to get more spare parts details.)
| the front reed |  |
Warp row |  |
| weft needle |  |
Link chain |  |
| crochet needle |  |
Weft needle |
 |
| needle |  |
Eyelet |  |
| heald |  |
Hook piece |
 |
| Drop wires |  |
Latch stop |
 |
| selvedge plate |  |
Hook needle |
 |
| Aluminum hand |  |
Reed lever |
 |
| shedding lever |  |
Bearing |  |
| heald frame-middle |  |
Weft spring assem |  |
| heald frames assem |  |
Weft tension spring |  |
