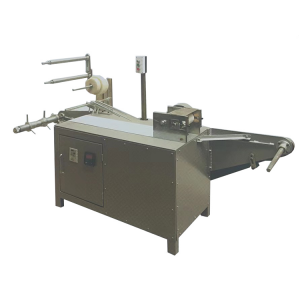

YTC-P 302 Single roller gauze folding and rolling machine
| application | Width 50mm gauze roll folio and 3 ply folding |
| Width 75mm gauze roll folio and 3 ply folding | |
| Width 100mm gauze roll folio and 3 ply folding | |
| Some special sizes can be effected via change folding roller | |
| Speed | 20-320 m/min (constant speed operation, frequency control speed) |
| Input fabric core diameter | 75mm (can be changed by users’ request) |
| Input fabric roller diameter | Max 85cm (can be changed by users’ request) |
Parts list (More other spare parts available. Please contact us to get more spare parts details.)
| the front reed |  |
Warp row |  |
| weft needle |  |
Link chain |  |
| crochet needle |  |
Weft needle |
 |
| needle |  |
Eyelet |  |
| heald |  |
Hook piece |
 |
| Drop wires |  |
Latch stop |
 |
| selvedge plate |  |
Hook needle |
 |
| Aluminum hand |  |
Reed lever |
 |
| shedding lever |  |
Bearing |  |
| heald frame-middle |  |
Weft spring assem |  |
| heald frames assem |  |
Weft tension spring |  |
