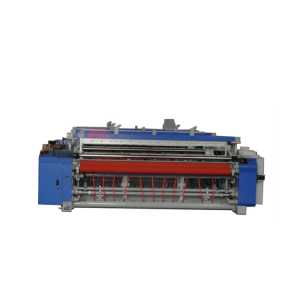

YTB-A 210 air jet loom

Short Description:

The middle size air jet loom is developed from the water jet loom, in which it is now capable of making cotton fabric, compare to the water jet loom only deal with polyester yarn type of fabric. This kind of air jet loom is alike the heavy air jet loom. It’s using the air compressor as centralized air supply system. It’s just like how the traditional air jet loom, but the price of this kind middle size air jet loom is only roughly half of the price of heavy air jet loom. And this kind machine could be the best choice for the purpose of making simple cotton, polyester and blend yarns. The machine now is at its 100% stable condition with adjustment.

Send email to us Download as PDF

Product Detail

Spare parts

Product Tags

Item		Specification	Optional
Red Space	Nominal	190, 210, 230, 250, 280, 340, 380cm
Red Space	Useful redding width	0-60cm(190-250cm) Same as nominal width max reduction 60cm (190-250cm)
Working range		Short yarn: 100S/1-5.8S/1
Weft section		Double nozzle free color selection device
Drive		Rush start moto	Stretch nozzle
Drive		Programmed and direct drive & stop mechanism by electromagnetic brake
Weft insertion		Main and sub-nozzles combined system
		Profile reed
		Auxiliary main nozzle	914/ 1000mm
Shedding		Positive cam shedding: shaft number up to 8	ETU electronic take-up
Shedding		Dobby shedding: shaft number up to 16
Let-off	Flange Dia	Electronic let-off (EL-O) with kickback function
		Positive easing
		800mm
		MTU mechanical take-up
Take-up	Max. Take-up Dia	600 mm
	Pick density	MTU: 6.6-80.5 picks/inch
		16.7-204.4 picks/inch
	Length count	Board display, take the function of fixed measure stop
	Temple	Floor-mounted
Beating		Crank type beating, multiple sley sword beating	Electronic formula
		4 links (Reed space up to 280cm)
		6 links (reed space 280cm)
		Intermediate rocking supporter
Measuring/ storing		FDP free drum pooling
Filling supply stand		Floor-mounted for 4 packages (2 colors), floor-mounted for 8 packages (4 colors)
Selvedge		Planetary gear motion (lenoselvedge of middle cord yarn)
Waste filling removal		Catch cord type
Cutter		Mechanical cutter
Lubrication		Oil bath system for main drive parts, centralized lubrication (manual grease)
Auto-stop motion	Weft yarn	Reflective weft feeler
	Warp yarn	Electric feeling system
	Others	Stop motion for selvage and catch cord yarn
	Stop cause indication	Message on board.4-color lamp for indicating
Middle scissors		Mechanical type (tisser double width)

Previous: High speedway rapier loom

Next: YTW-P 210 gauze slitting and rolling machine

5ff1ad2b82d30

Parts list (More other spare parts available. Please contact us to get more spare parts details.)

the front reed		Warp row
weft needle		Link chain
crochet needle		Weft needle
needle		Eyelet
heald		Hook piece
Drop wires		Latch stop
selvedge plate		Hook needle
Aluminum hand		Reed lever
shedding lever		Bearing
heald frame-middle		Weft spring assem
heald frames assem		Weft tension spring
